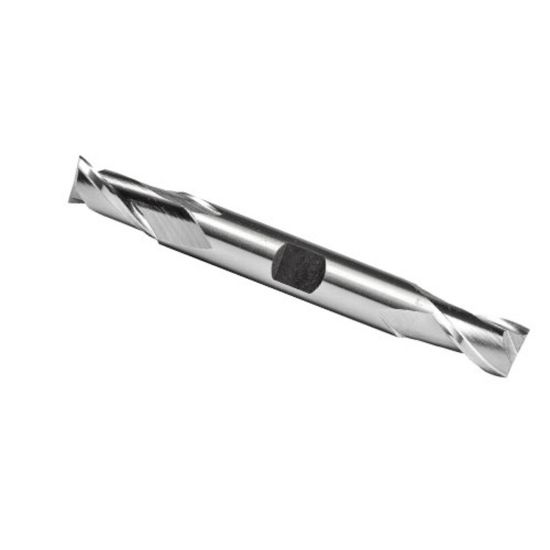

ICE-ECO-03125-2-35-075-SQ-WLDN-BRITE-DE-R DIA 5/16 SH 0.3125 LOC 0.7500 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788340
Delivery date: 3-5 days
$32.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating General Performance
Shipping State Wisconsin
Made In USA No
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Helix Angle 30°
Single/Double End Double End
Flutes/Inserts 2
Length Of Cut 0.7500 19.05MM
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <42HRC, Cast Iron, Stainless
Cutter Dia 0.3125 7.94MM - 5/16
Dimension Description 0.313 x 0.313 x 0.750 x 4.000
Machine Side Connection Size 0.3125 7.94MM
Flute Length 0.7500 19.05MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Agricultural YES
Energy Yes
