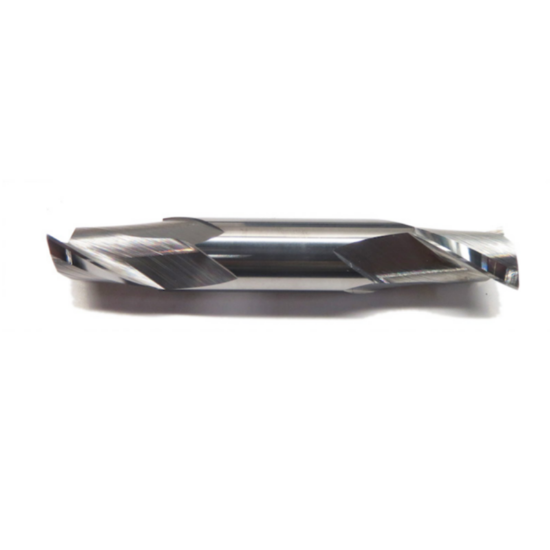

ICE-ECO-01875-4-325-05-SQ-RND-BRITE-DE-R DIA 3/16 SH 0.1875 LOC 0.50 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788335
Delivery date: 3-5 days
$30.83

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Made In USA No
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Machine Side Connection Size 0.1875 4.76MM
Cut Rating <42HRC, Cast Iron, Stainless
End Of Tool Shape Square
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 0.5000 12.70MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.188 x 0.188 x 0.500 x 3.000
Length Of Cut 0.5000 12.70MM
Overall Len 3.0000 76.20MM
Helix Angle 30°
Single/Double End Double End
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Agricultural YES
Energy Yes
