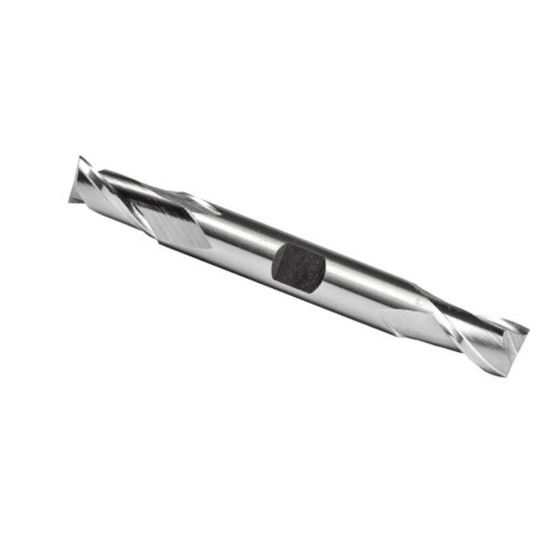

ICE-ECO-05-2-3-0625-BN-WLDN-BRITE-DE-S DIA 1/2 SH 0.50 LOC 0.6250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788248
Delivery date: 3-5 days
$47.97

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Profile Milling, Side Milling, Ball Slot Milling
Shipping State Wisconsin
Made In USA No
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Dimension Description 0.500 x 0.500 x 0.625 x 3.000
End Of Tool Shape Ball Nose
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Inch/Metric Inch
Single/Double End Double End
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Flute Length 0.6250 15.88MM
Helix Angle 30°
Length Type Stub
Cut Rating <42HRC, Cast Iron, Stainless
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
Agricultural YES
Energy Yes
