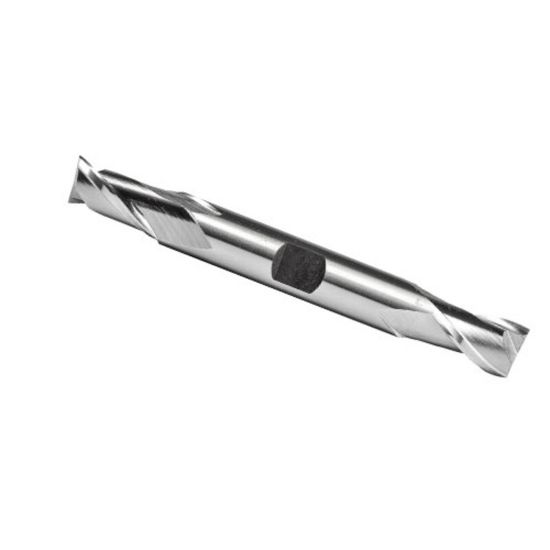

ICE-ECO-04375-4-275-05625-BN-WLDN-BRITE-DE-S DIA 7/16 SH 0.50 LOC 0.4375 OAL 2.7500 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788247
Delivery date: 3-5 days
$41.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Ball Slot Milling, Profile Milling, Ball Milling
Package Size 1
Shipping State Wisconsin
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Helix Angle 30°
Dimension Description 0.438 x 0.500 x 0.438 x 2.750
Cut Rating <42HRC, Cast Iron, Stainless
Overall Len 2.7500 69.85MM
End Of Tool Shape Ball Nose
Cutter Dia 0.4375 11.11MM - 7/16
Length Type Stub
Cutter Style Carbide Ball Finisher
Machine Side Connection Size 0.5000 12.70MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Length Of Cut 0.4375 11.11MM
Flute Length 0.4375 11.11MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Contractor Yes
