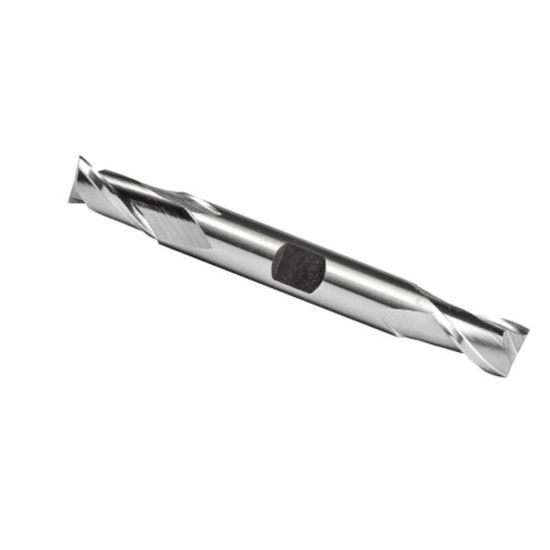

ICE-ECO-0375-2-25-05625-BN-WLDN-BRITE-DE-S DIA 3/8 SH 0.3750 LOC 0.4375 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Double End Ball Nose Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788244
Delivery date: 3-5 days
$31.98

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Wisconsin
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating <42HRC, Cast Iron, Stainless
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flute Length 0.4375 11.11MM
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Type Stub
Dimension Description 0.375 x 0.375 x 0.438 x 2.500
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Tool Material Carbide
Length Of Cut 0.4375 11.11MM
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
Agricultural YES
Energy Yes
