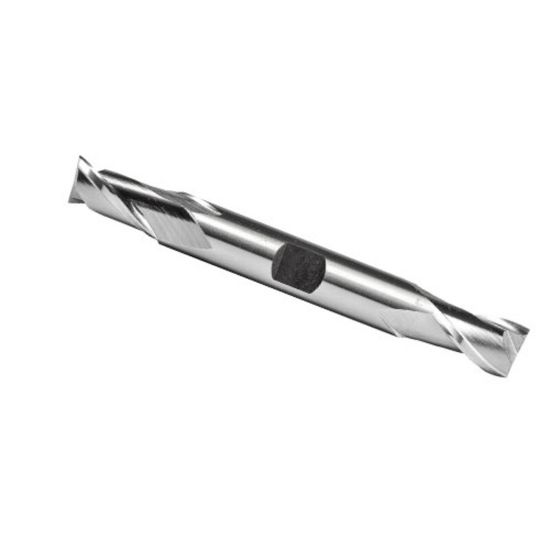

ICE-ECO-05625-2-35-06875-SQ-WLDN-BRITE-DE-S DIA 9/16 SH 0.5625 LOC 0.6875 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788142
Delivery date: 3-5 days
$79.94

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Shipping State Wisconsin
Made In USA No
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Tool Material Carbide
Length Of Cut 0.6875 17.46MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.563 x 0.625 x 0.688 x 3.500
Machine Side Connection Size 0.5625 14.29MM
Length Type Stub
Cut Rating <42HRC, Cast Iron, Stainless
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cutter Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 2
Flute Length 0.6875 17.46MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Contractor Yes
Automotive Yes
