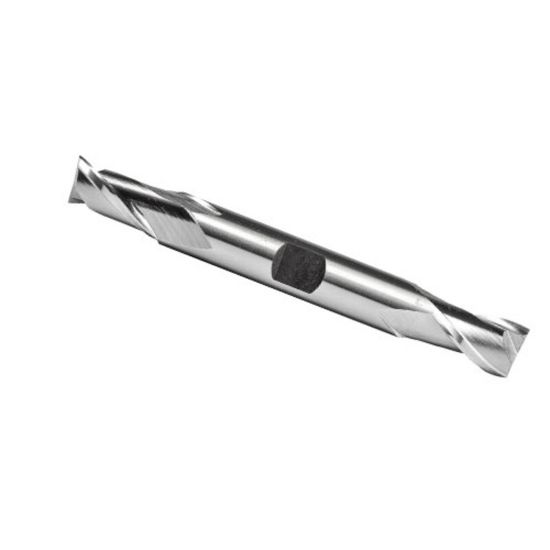

ICE-ECO-03125-4-25-05-SQ-WLDN-BRITE-DE-S DIA 5/16 SH 0.3125 LOC 0.50 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788135
Delivery date: 3-5 days
$16.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Slot Milling, Shoulder Milling
Package Size 1
Shipping State Wisconsin
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.5000 63.50MM
Dimension Description 0.313 x 0.313 x 0.500 x 2.500
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 4
End Of Tool Shape Square
Flute Length 0.5000 12.70MM
Cutter Style Carbide Finisher
Cut Rating <42HRC, Cast Iron, Stainless
Cutter Dia 0.3125 7.94MM - 5/16
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.5000 12.70MM
Length Type Stub
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Energy Yes
Agricultural YES
Automotive Yes
Job Shop Yes
Contractor Yes
