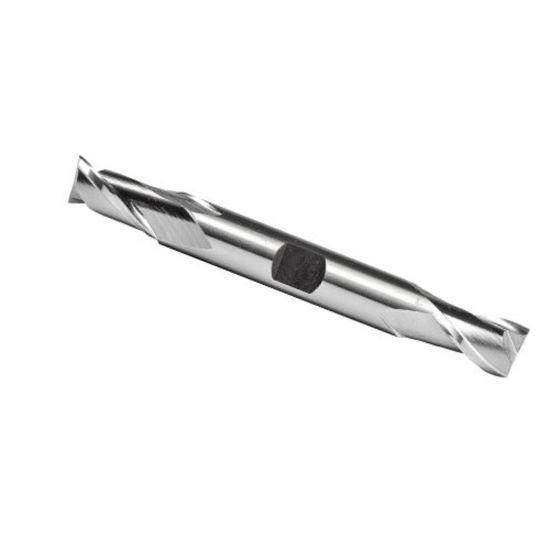

ICE-ECO-028125-4-25-05-SQ-WLDN-BRITE-DE-S DIA 9/32 SH 0.3125 LOC 0.50 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788133
Delivery date: 3-5 days
$17.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Wisconsin
Made In USA No
Application Slot Milling, Counterboring, Face Milling, Shoulder Milling
Package Size 1
Dimensional Specifications
Cut Rating <42HRC, Cast Iron, Stainless
End Of Tool Shape Square
Dimension Description 0.281 x 0.313 x 0.500 x 2.500
Flutes/Inserts 4
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Single/Double End Double End
Machine Side Connection Size 0.3125 7.94MM
Cutter Dia 0.2812 7.14MM - 9/32
Length Type Stub
Tool Material Carbide
Flute Length 0.5000 12.70MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Contractor Yes
Agricultural YES
Energy Yes
Job Shop Yes
