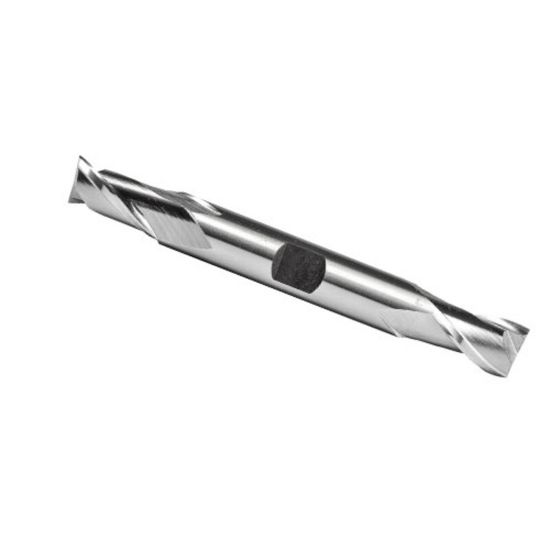

ICE-ECO-028125-2-25-05-SQ-WLDN-BRITE-DE-S DIA 9/32 SH 0.3125 LOC 0.50 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788132
Delivery date: 3-5 days
$17.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Wisconsin
Dimensional Specifications
Cutter Dia 0.2812 7.14MM - 9/32
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Weldon
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Double End
Overall Len 2.5000 63.50MM
End Of Tool Shape Square
Flute Length 0.5000 12.70MM
Cut Rating <42HRC, Cast Iron, Stainless
Dimension Description 0.281 x 0.313 x 0.500 x 2.500
Flutes/Inserts 2
Machine Side Connection Size 0.3125 7.94MM
Length Type Stub
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Contractor Yes
