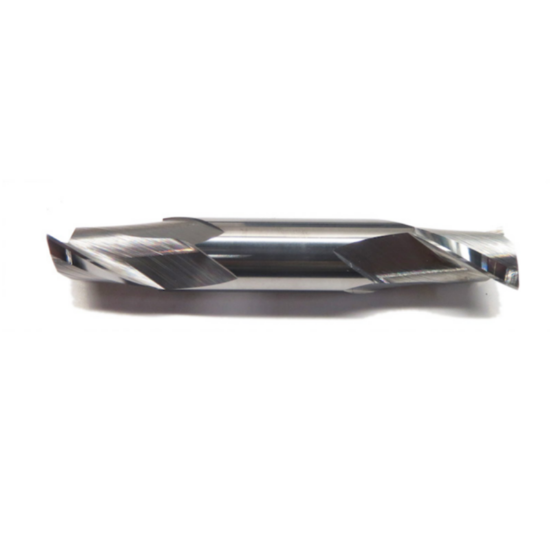

ICE-ECO-01875-4-2-03125-SQ-RND-BRITE-DE-S DIA 3/16 SH 0.1875 LOC 0.3125 OAL 2.00 End Mill Standard Flute Standard Helix Carbide Double End Square Sharp Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788127
Delivery date: 3-5 days
$11.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Made In USA No
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Flute Length 0.3125 7.94MM
Dimension Description 0.188 x 0.188 x 0.313 x 2.000
Cut Rating <42HRC, Cast Iron, Stainless
Cutter Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.3125 7.94MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Length Type Stub
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Energy Yes
Agricultural YES
