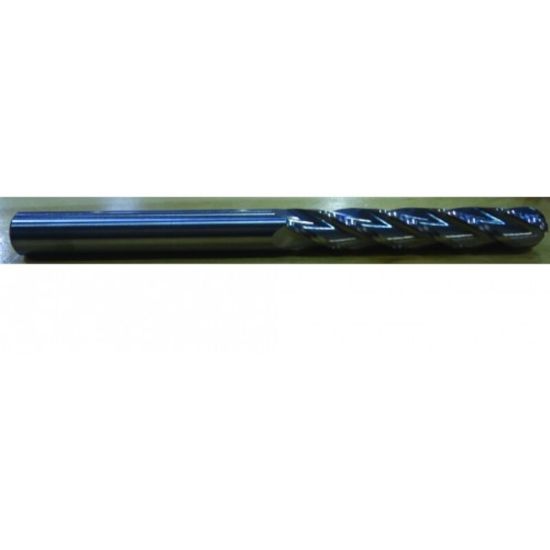

HTC 775-4508 DIA 1/2 SH 0.50 LOC 5.00 OAL 8.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC775-4508
Delivery date: 3-5 days
$83.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating General Performance
Shipping State Michigan
Dimensional Specifications
End Of Tool Shape Ball Nose
Machine Side Connection Type Cylindrical
Helix Angle 30°
Flutes/Inserts 4
Length Type Long
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Length Of Cut 5.0000 127.00MM
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.5000 12.70MM
Overall Len 8.0000 203.20MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Dimension Description 0.500 x 0.500 x 5.000 x 8.000
Cutter Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
