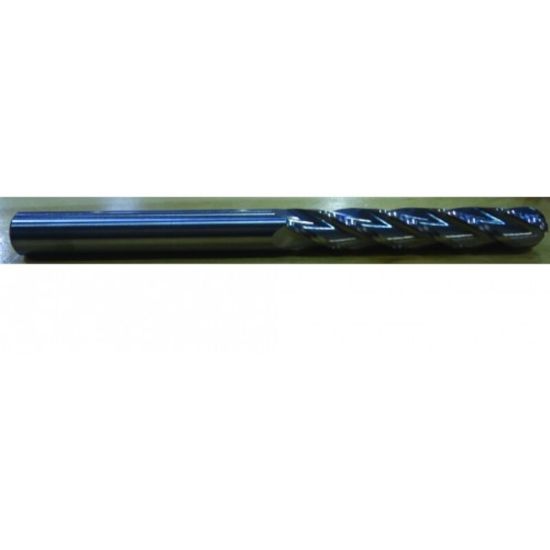

HTC 775-2758 DIA 3/4 SH 0.7500 LOC 5.00 OAL 8.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC775-2758
Delivery date: 3-5 days
$165.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Ball Milling, Ball Slot Milling, Profile Milling, Side Milling, Copy Milling
Made In USA Yes
Shipping State Michigan
Package Size 1
Dimensional Specifications
Length Of Cut 5.0000 127.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 8.0000 203.20MM
Cutter Style Carbide Ball Finisher
Dimension Description 0.750 x 0.750 x 5.000 x 8.000
Helix Angle 30°
Flutes/Inserts 2
Length Type Long
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
