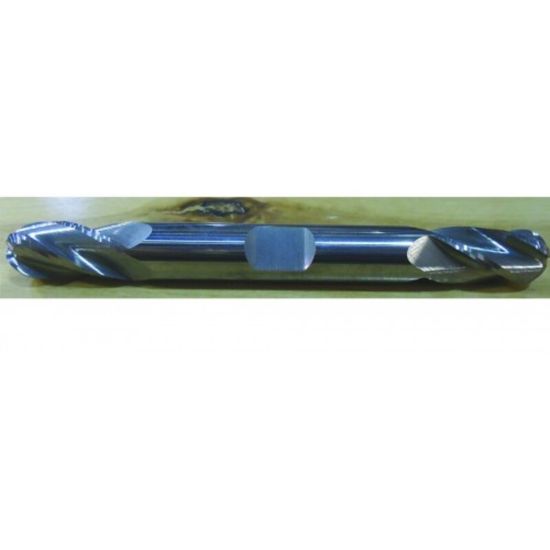

HTC 215-4500 DIA 1/2 SH 0.50 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC215-4500
Delivery date: 3-5 days
$46.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Profile Milling, Side Milling, Ball Slot Milling
Performance Rating General Performance
Package Size 1
Shipping State Michigan
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Ball Nose
Tool Material Carbide
Inch/Metric Inch
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Flutes/Inserts 4
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Dimension Description 0.500 x 0.500 x 1.000 x 4.000
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Helix Angle 30°
Single/Double End Double End
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
