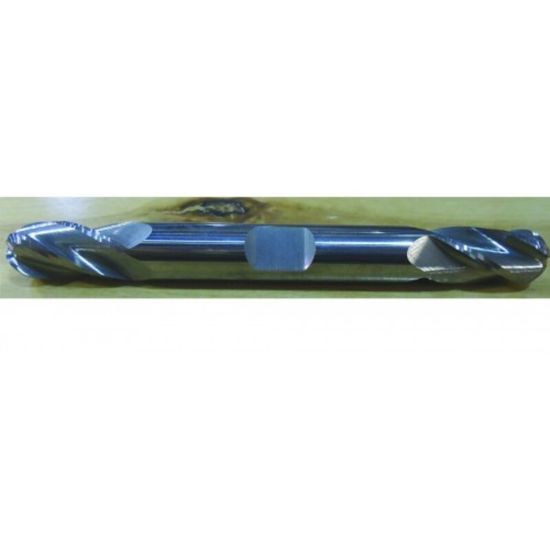

HTC 215-4312 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC215-4312
Delivery date: 3-5 days
$32.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Made In USA Yes
Package Size 1
Shipping State Michigan
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.3125 7.94MM - 5/16
Overall Len 3.5000 88.90MM
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Dimension Description 0.313 x 0.375 x 0.750 x 3.500
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
