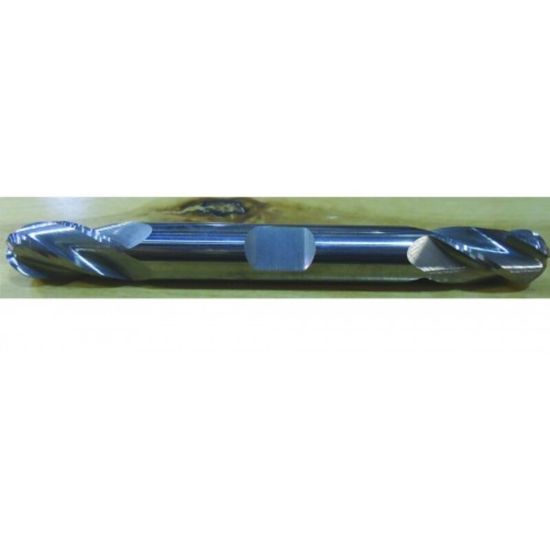

HTC 215-4250 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC215-4250
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling
Made In USA Yes
Performance Rating General Performance
Shipping State Michigan
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Dimension Description 0.250 x 0.375 x 0.625 x 3.500
Cutter Style Carbide Ball Finisher
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Length Type Standard
Cutter Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.3750 9.53MM
Tool Material Carbide
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
