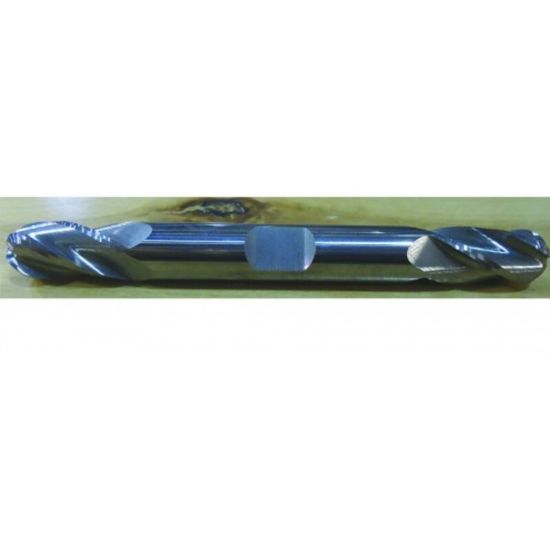

HTC 215-4156 DIA 5/32 SH 0.3750 LOC 0.4375 OAL 3.1250 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC215-4156
Delivery date: 3-5 days
$29.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Side Milling, Ball Milling, Profile Milling
Performance Rating General Performance
Shipping State Michigan
Package Size 1
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.4375 11.11MM
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 3.1250 79.38MM
End Of Tool Shape Ball Nose
Cutter Dia 0.1563 3.97MM - 5/32
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Style Carbide Ball Finisher
Dimension Description 0.156 x 0.375 x 0.438 x 3.125
Flutes/Inserts 4
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
