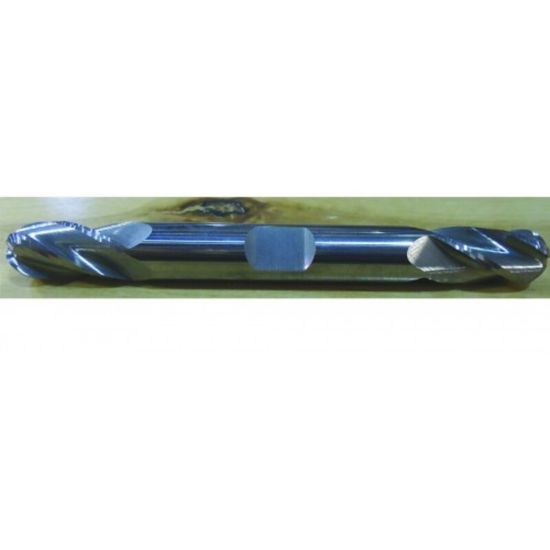

Picture of HTC 215-2562 Dia 9/16 SH 0.6250 LOC 1.2500 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball NoseBall

HTC 215-2562 Dia 9/16 SH 0.6250 LOC 1.2500 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball NoseBall

Part Number: HTC215-2562 0.563 x 0.625 x 1.250 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: 1246661
Vendor: Sussex Tool and Supply
$98.86
HTC Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Double End HTC Carbide
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5625 14.29MM - 9/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Double End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
