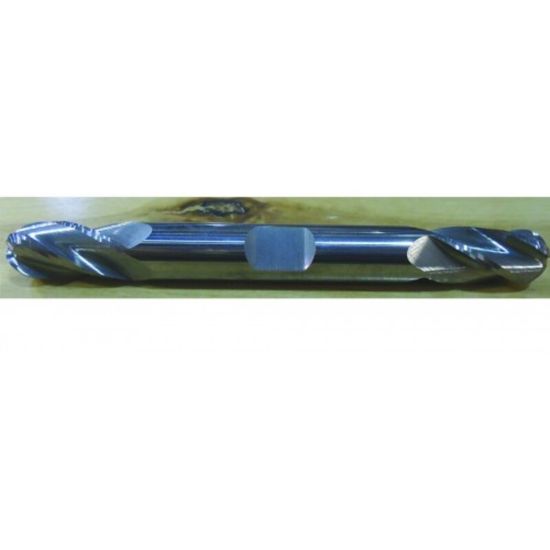

HTC 215-2187 DIA 3/16 SH 0.3750 LOC 0.50 OAL 3.2500 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC215-2187
Delivery date: 3-5 days
$28.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Ball Milling, Copy Milling, Ball Slot Milling, Side Milling
Shipping State Michigan
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Overall Len 3.2500 82.55MM
Cutter Style Carbide Ball Finisher
End Of Tool Shape Ball Nose
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.5000 12.70MM
Dimension Description 0.188 x 0.375 x 0.500 x 3.250
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
