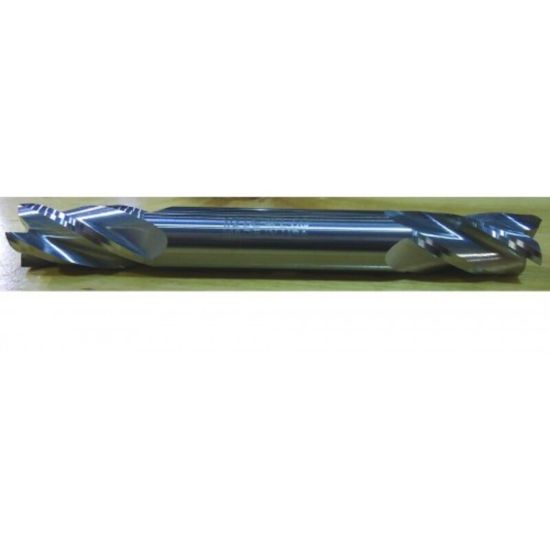

HTC 210-4625 DIA 5/8 SH 0.6250 LOC 1.50 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC210-4625
Delivery date: 3-5 days
$72.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Michigan
Performance Rating General Performance
Dimensional Specifications
End Of Tool Shape Square
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.6250 15.88MM - 5/8
Dimension Description 0.625 x 0.625 x 1.500 x 6.000
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Helix Angle 30°
Single/Double End Double End
Flutes/Inserts 4
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.5000 38.10MM
Tool Material Carbide
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
