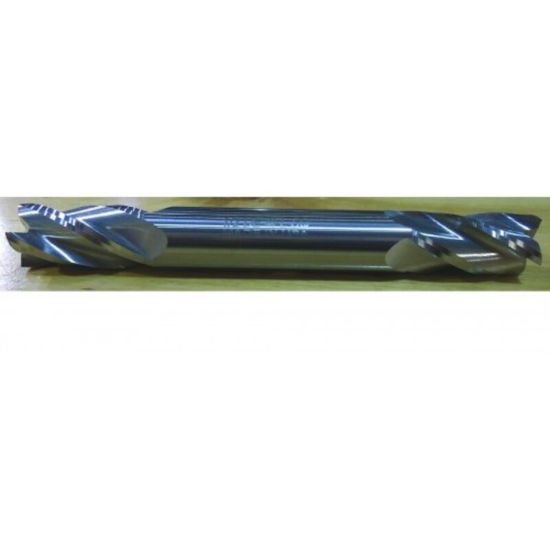

HTC 210-2093 DIA 3/32 SH 0.3750 LOC 0.3125 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC210-2093
Delivery date: 3-5 days
$24.34

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Made In USA Yes
Shipping State Michigan
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Helix Angle 30°
Dimension Description 0.094 x 0.375 x 0.313 x 3.000
Tool Material Carbide
Length Of Cut 0.3125 7.94MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Double End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Flutes/Inserts 2
Cutter Dia 0.0938 2.38MM - 3/32
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
