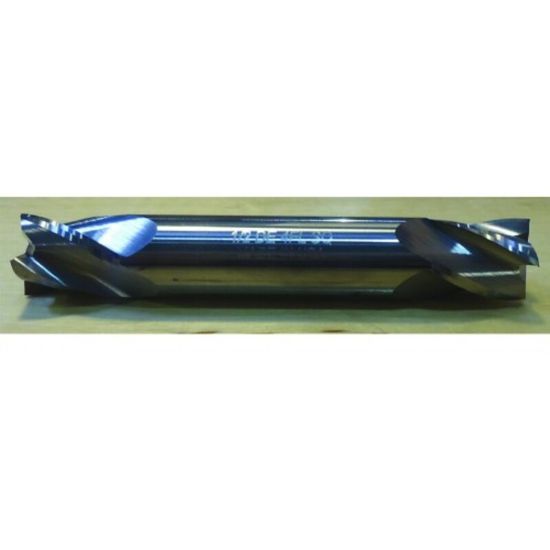

Picture of HTC 190-4625 Dia 5/8 SH 0.6250 LOC 0.6875 OAL3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

HTC 190-4625 Dia 5/8 SH 0.6250 LOC 0.6875 OAL3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Part Number: HTC190-4625 0.625 x 0.625 x 0.688 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: 1246389
Vendor: Sussex Tool and Supply
$68.00
HTC Standard Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 4 Double End HTC Carbide
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.6875 17.46MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Double End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
