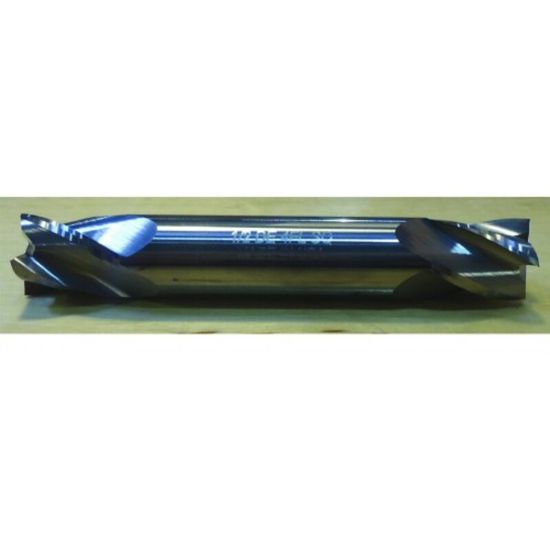

Picture of HTC 190-4437 Dia 7/16 SH 0.50 LOC 0.5625 OAL2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

HTC 190-4437 Dia 7/16 SH 0.50 LOC 0.5625 OAL2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Part Number: HTC190-4437 0.438 x 0.500 x 0.563 x 2.750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: 1246386
Vendor: Sussex Tool and Supply
$29.00
HTC Standard Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 4 Double End HTC Carbide
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.5000 12.70MM
Overall Length 2.7500 69.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.4375 11.11MM - 7/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.5625 14.29MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Double End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
