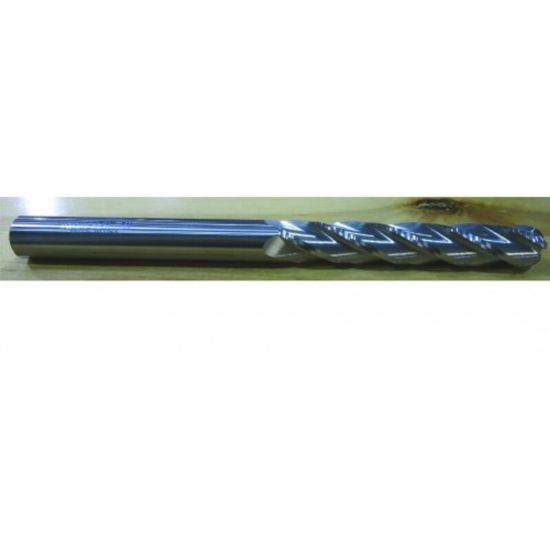

HTC 175-4625 DIA 5/8 SH 0.6250 LOC 3.00 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC175-4625
Delivery date: 3-5 days
$99.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Shipping State Michigan
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Length Type Standard
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Of Cut 3.0000 76.20MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.6250 15.88MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 6.0000 152.40MM
Dimension Description 0.625 x 0.625 x 3.000 x 6.000
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Type Cylindrical
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
