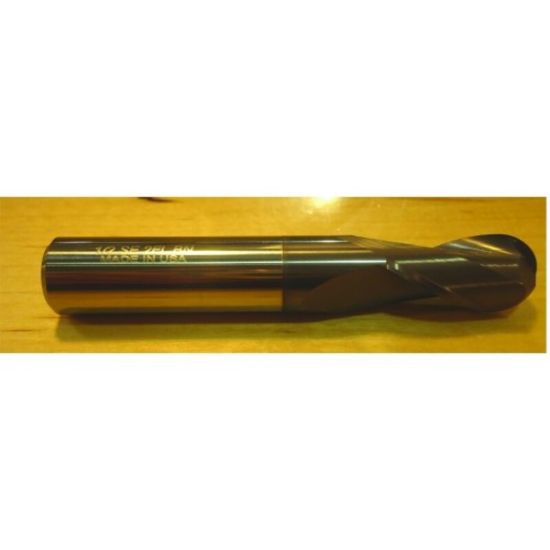

Picture of HTC 145-2468 Dia 15/32 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

HTC 145-2468 Dia 15/32 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HTC145-2468 0.469 x 0.500 x 1.000 x 3.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1245406
Vendor: Sussex Tool and Supply
$44.00

Description

HTC Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End HTC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.4688 11.91MM - 15/32
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
