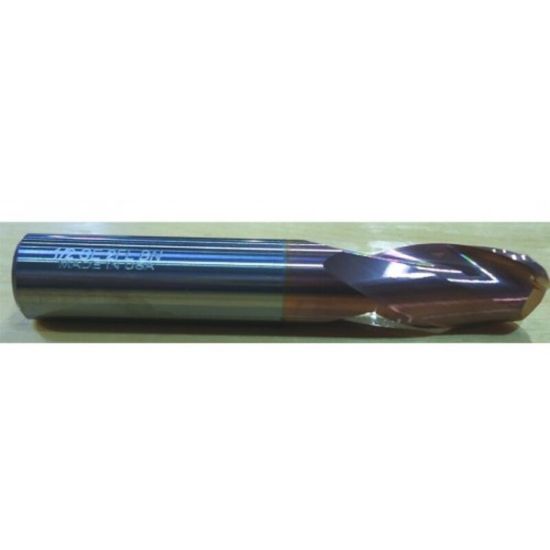

Picture of HTC 143-2375 Dia 3/8 SH 0.3750 LOC 1.00 OAL2.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall

HTC 143-2375 Dia 3/8 SH 0.3750 LOC 1.00 OAL2.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall

Part Number: HTC143-2375 0.375 x 0.375 x 1.000 x 2.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1245208
Vendor: Sussex Tool and Supply
$24.79

Description

HTC Standard Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 2 Single End HTC Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
