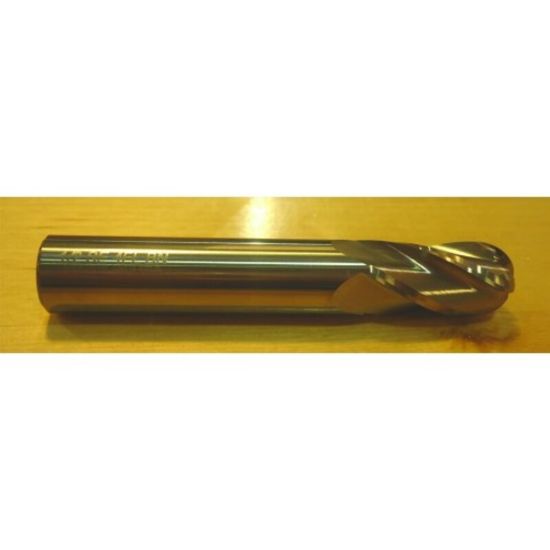

HTC 135-4953 DIA 61/64 SH 1.00 LOC 1.50 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-4953
Delivery date: 3-5 days
$156.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Made In USA Yes
Shipping State Michigan
Package Size 1
Dimensional Specifications
Cutter Dia 0.9531 24.21MM - 61/64
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.0000 101.60MM
Helix Angle 30°
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Type Standard
Dimension Description 0.953 x 1.000 x 1.500 x 4.000
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
