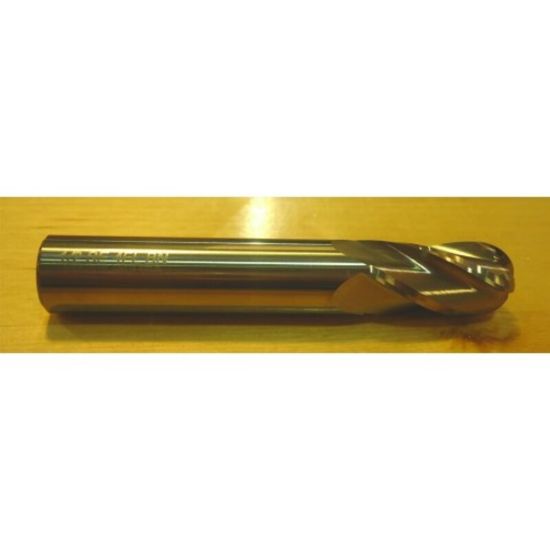

HTC 135-4890 DIA 57/64 SH 1.00 LOC 1.50 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-4890
Delivery date: 3-5 days
$162.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Performance Rating General Performance
Shipping State Michigan
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.8906 22.62MM - 57/64
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Shank/Pilot Dia 1.0000 25.40MM
Dimension Description 0.891 x 1.000 x 1.500 x 4.000
End Of Tool Shape Ball Nose
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Flutes/Inserts 4
Length Type Standard
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
