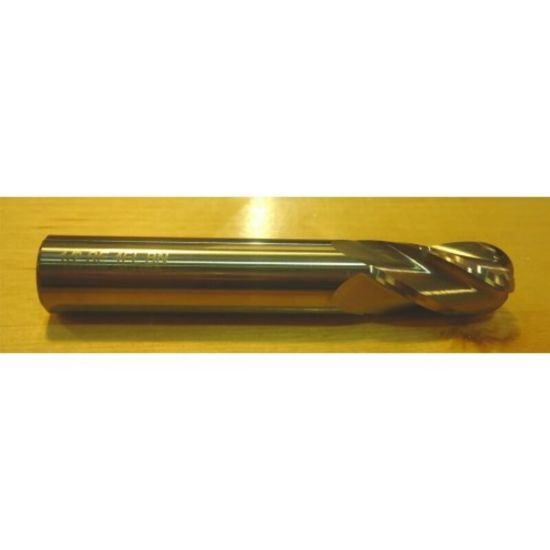

HTC 135-4781 DIA 25/32 SH 0.8750 LOC 1.50 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-4781
Delivery date: 3-5 days
$159.34

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Ball Milling, Profile Milling, Side Milling
Performance Rating General Performance
Shipping State Michigan
Made In USA Yes
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.781 x 0.875 x 1.500 x 4.000
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Cutter Dia 0.7813 19.85MM - 25/32
Length Type Standard
End Of Tool Shape Ball Nose
Length Of Cut 1.5000 38.10MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Overall Len 4.0000 101.60MM
Helix Angle 30°
Flutes/Inserts 4
Machine Side Connection Size 0.8750 22.23MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
