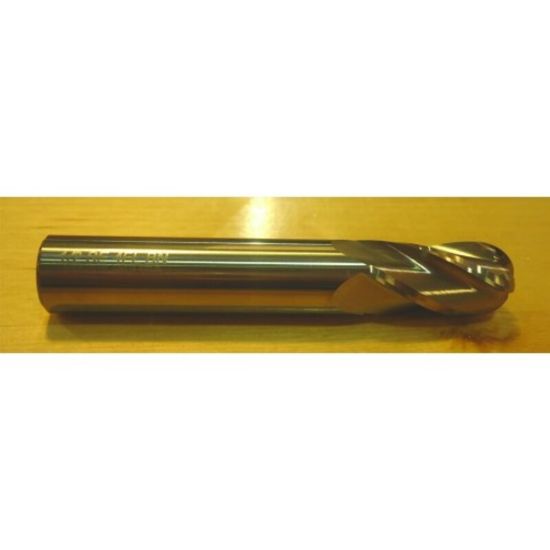

HTC 135-4546 DIA 35/64 SH 0.5625 LOC 1.2500 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-4546
Delivery date: 3-5 days
$58.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Performance Rating General Performance
Shipping State Michigan
Package Size 1
Dimensional Specifications
Dimension Description 0.547 x 0.563 x 1.250 x 3.500
Machine Side Connection Size 0.5625 14.29MM
Helix Angle 30°
Cutter Dia 0.5469 13.89MM - 35/64
Overall Len 3.5000 88.90MM
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Length Type Standard
Single/Double End Single End
End Of Tool Shape Ball Nose
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 1.2500 31.75MM
Cutter Style Carbide Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
