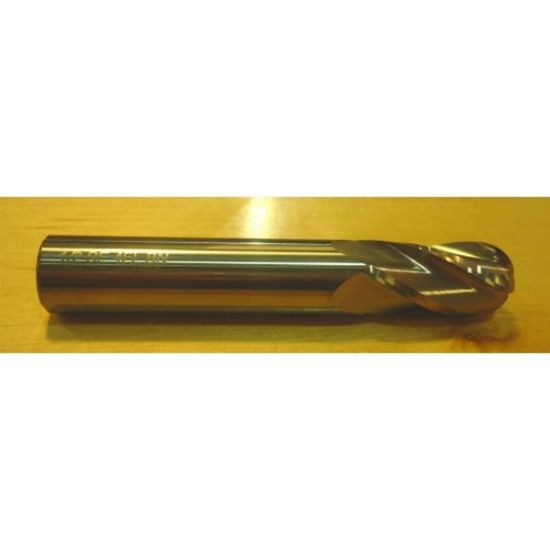

HTC 135-4515 DIA 33/64 SH 0.5625 LOC 1.2500 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-4515
Delivery date: 3-5 days
$63.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Profile Milling, Side Milling, Ball Slot Milling
Performance Rating General Performance
Package Size 1
Shipping State Michigan
Made In USA Yes
Dimensional Specifications
Dimension Description 0.516 x 0.563 x 1.250 x 3.500
End Of Tool Shape Ball Nose
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Flutes/Inserts 4
Cutter Dia 0.5156 13.10MM - 33/64
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.5625 14.29MM
Length Of Cut 1.2500 31.75MM
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
