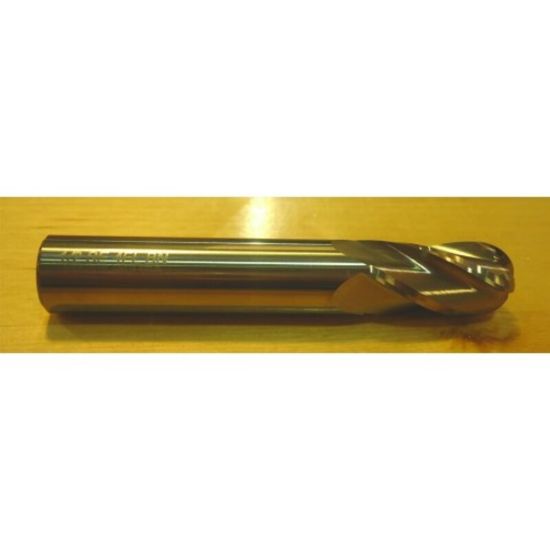

HTC 135-3781 DIA 25/32 SH 0.8750 LOC 1.50 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-3781
Delivery date: 3-5 days
$159.34

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Made In USA Yes
Shipping State Michigan
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Overall Len 4.0000 101.60MM
Helix Angle 30°
Length Type Standard
Cutter Dia 0.7813 19.85MM - 25/32
Dimension Description 0.781 x 0.875 x 1.500 x 4.000
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Cutter Style Carbide Ball Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Machine Side Connection Size 0.8750 22.23MM
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
