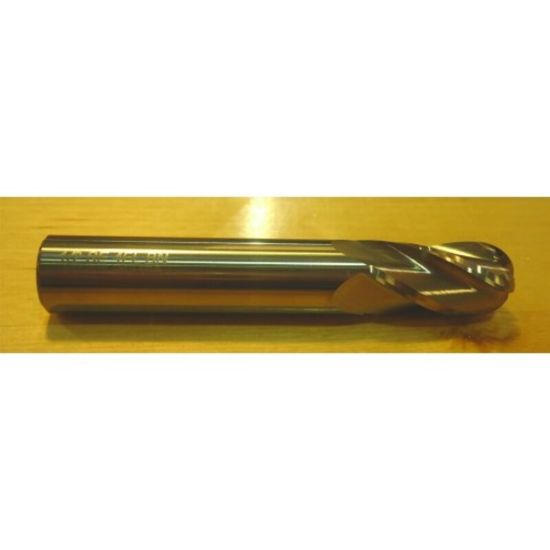

HTC 135-3125 DIA 1/8 SH 0.1250 LOC 0.50 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-3125
Delivery date: 3-5 days
$5.49

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Michigan
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Single/Double End Single End
Dimension Description 0.125 x 0.125 x 0.500 x 1.500
End Of Tool Shape Ball Nose
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Cutter Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
