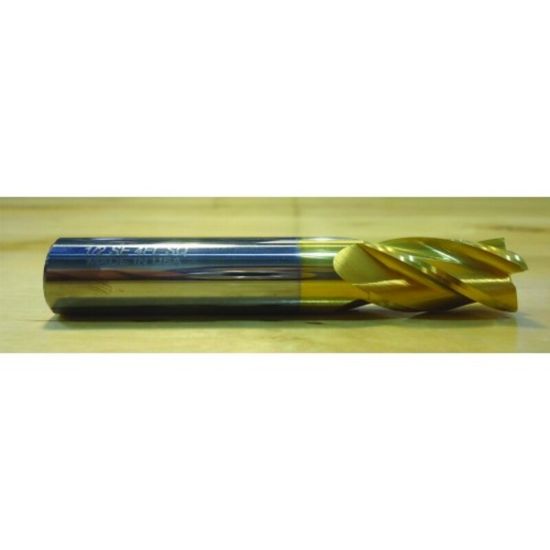

Picture of HTC 125-4328 Dia 21/64 SH 0.3750 LOC 0.8750 OAL2.50 End Mill Standard Flute Standard Helix Carbide TiN Single End Square Sharp

HTC 125-4328 Dia 21/64 SH 0.3750 LOC 0.8750 OAL2.50 End Mill Standard Flute Standard Helix Carbide TiN Single End Square Sharp

Part Number: HTC125-4328 0.328 x 0.375 x 0.875 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: 1244373
Vendor: Sussex Tool and Supply
$18.52
HTC Standard Helix End Mill Carbide TiN Square Sharp Standard Flute Flutes 4 Single End HTC Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3281 8.33MM - 21/64
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
