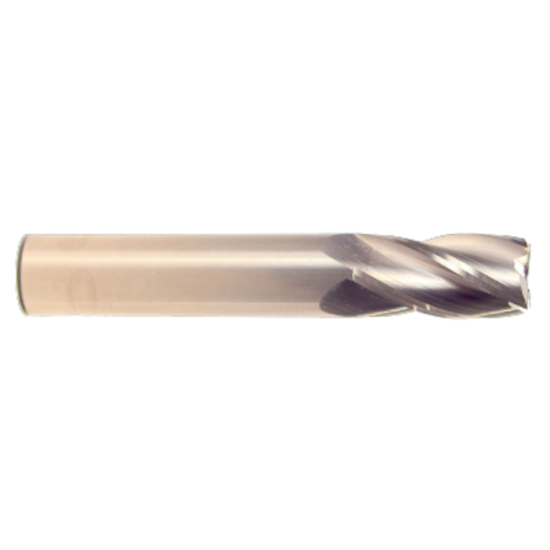

HTC 120-4562 DIA 9/16 SH 0.5625 LOC 1.2500 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC120-4562
Delivery date: 3-5 days
$42.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Michigan
Package Size 1
Dimensional Specifications
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.5625 14.29MM
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 1.2500 31.75MM
Cutter Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Single/Double End Single End
Dimension Description 0.563 x 0.563 x 1.250 x 3.500
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
