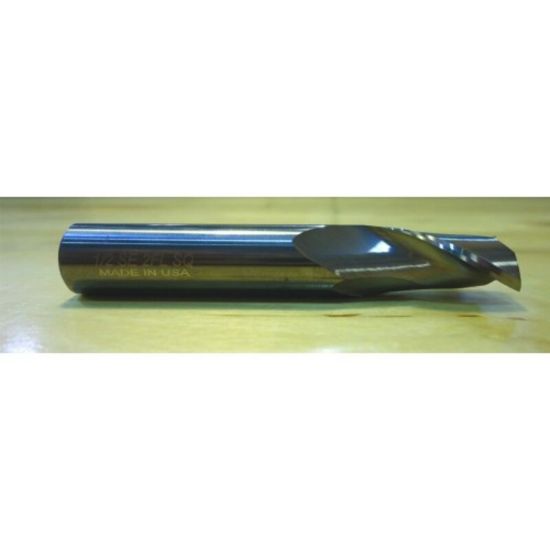

HTC 120-2890 DIA 57/64 SH 1.00 LOC 1.50 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC120-2890
Delivery date: 3-5 days
$126.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Shipping State Michigan
Performance Rating General Performance
Dimensional Specifications
Dimension Description 0.891 x 1.000 x 1.500 x 4.000
End Of Tool Shape Square
Cutter Dia 0.8906 22.62MM - 57/64
Overall Len 4.0000 101.60MM
Helix Angle 30°
Length Type Standard
Flutes/Inserts 2
Length Of Cut 1.5000 38.10MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
