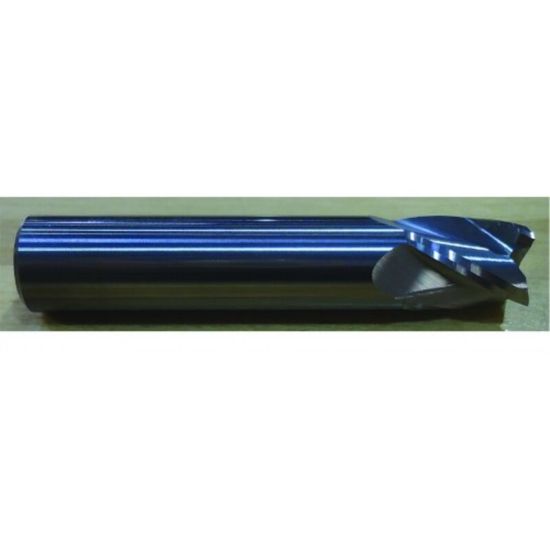

HTC 100-2031 DIA 1/32 SH 0.1250 LOC 0.0625 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC100-2031
Delivery date: 3-5 days
$4.89

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA Yes
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Shipping State Michigan
Dimensional Specifications
Overall Len 1.5000 38.10MM
End Of Tool Shape Square
Dimension Description 0.031 x 0.125 x 0.063 x 1.500
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Cutter Dia 0.0312 0.79MM - 1/32
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 30°
Length Of Cut 0.0625 1.59MM
Flutes/Inserts 2
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
