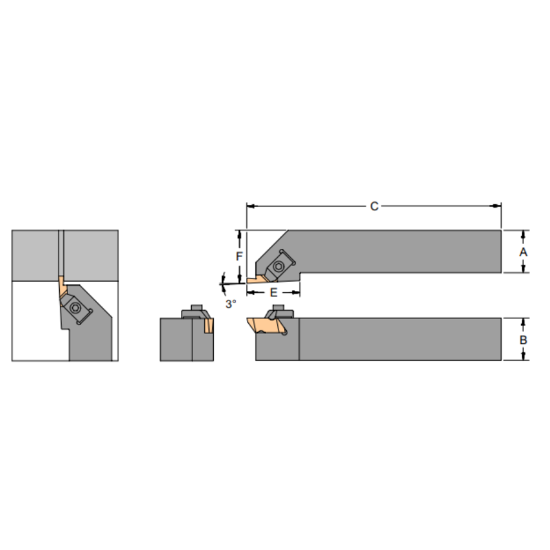

Picture of HORIZON TSR-244D Grooving,Threading Stick Tool Top Notch 1.500 Shank Size 4

HORIZON TSR-244D Grooving,Threading Stick Tool Top Notch 1.500 Shank Size 4

ANSI: TSR-244D

ISO: TSR-244D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: HOR44740
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Ext.Threading, Ext.Grooving
Package Size 1
Insert/Tool Tool
Shipping State N.Carolina
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Tool Over Hang 1.5000
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Style TOP NOTCH
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape Top Notch
Fasteners & Connectors
Clamp Screw S-412
Clamp/Wedge CM-72
