Picture of HORIZON TSL-203D Grooving,Threading Stick Tool Top Notch 1.250 Shank Size 3

HORIZON TSL-203D Grooving,Threading Stick Tool Top Notch 1.250 Shank Size 3

ANSI: TSL-203D

ISO: TSL-203D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: HOR44595
Delivery date: 3-5 days
$20.12
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Ext.Threading
Made In USA Yes
Insert Type Positive
Package Size 1
Shipping State N.Carolina
Insert Application General Purpose

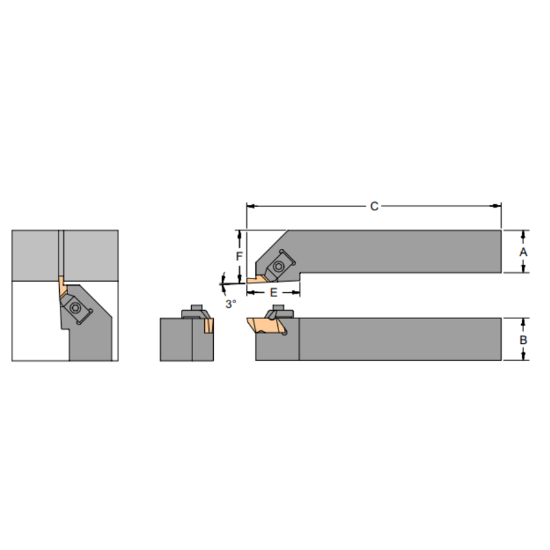

Dimensional Specifications
Insert Size Ic 3
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.0000 152.40MM
Tool Over Hang 1.3800
Tool Width 1.2500
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Top Notch
Insert Style TOP NOTCH
Inter/Extern External
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge CM-73
Clamp Screw S-412
