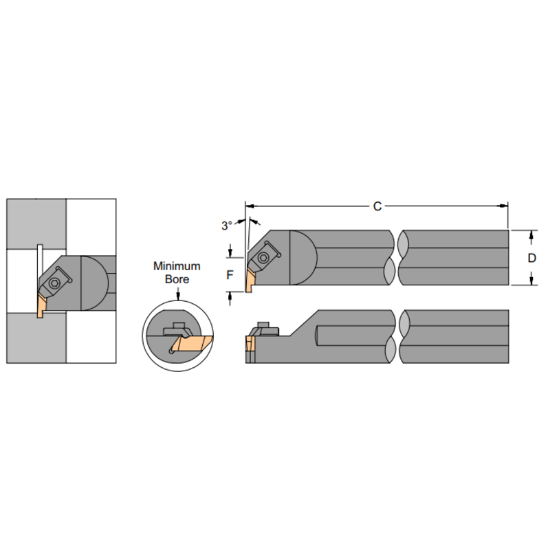

Picture of HORIZON A32-TER3 Grooving,Threading Boring Bar Top Notch 2.000 Shank Size 3

HORIZON A32-TER3 Grooving,Threading Boring Bar Top Notch 2.000 Shank Size 3

ANSI: A32-TER3

ISO: A32-TER3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: HOR49513
Delivery date: 3-5 days
$7.96
Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State N.Carolina
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Int.Grooving, Int.Threading
Insert Application General Purpose
Dimensional Specifications
Overall Len 14.0000 355.60MM
Min Bore 2.5000
Shank/Pilot Dia 2.0000 50.80MM - 2
Tool Material Steel
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Insert Style TOP NOTCH
Hand R/L Right
Insert Shape/Cutter Pocket Shape Top Notch
Coolant Thru Yes
Inter/Extern Internal
Fasteners & Connectors
Clamp Screw S-412
Clamp/Wedge CM-73
