Picture of HORIZON A08-TEL2 Grooving,Threading Boring Bar Top Notch 0.500 Shank Size 2

HORIZON A08-TEL2 Grooving,Threading Boring Bar Top Notch 0.500 Shank Size 2

ANSI: A08-TEL2

ISO: A08-TEL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: HOR39202
Delivery date: 3-5 days
$9.84
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Grooving, Int.Threading
Made In USA Yes
Shipping State N.Carolina
Package Size 1
Insert Application General Purpose
Insert Type Positive

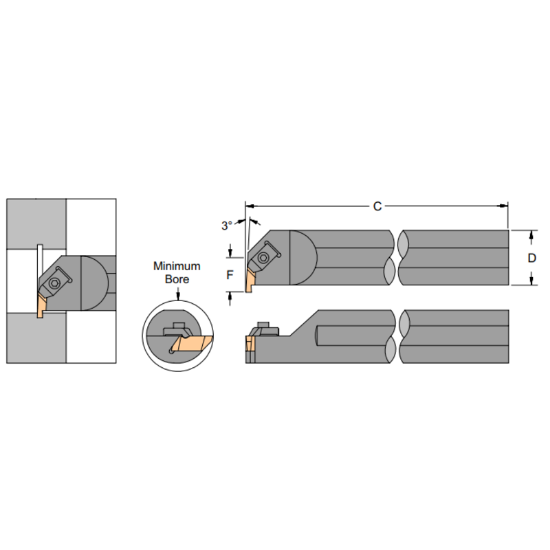

Dimensional Specifications
Overall Len 6.0000 152.40MM
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Min Bore 0.7300
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Top Notch
Coolant Thru Yes
Insert Style TOP NOTCH
Inter/Extern Internal
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge CM-146
Clamp Screw S-310
