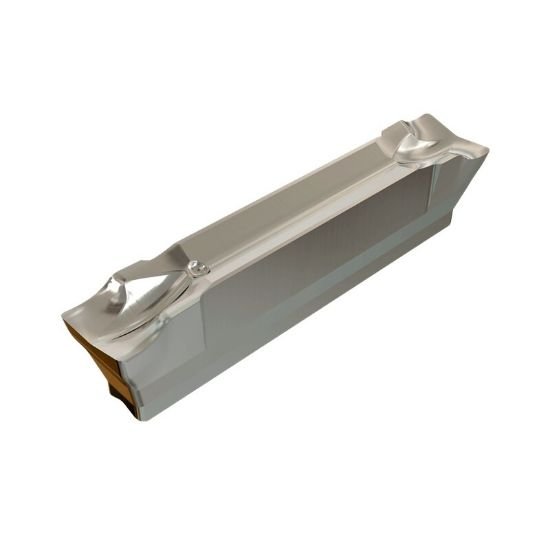

Picture of HGL 3002J-6D IC328 Iscar 6002747 Cut Off Insert 0.1180 3.00mm Wide 0.0080 0.20mm Radius

HGL 3002J-6D IC328 Iscar 6002747 Cut Off Insert 0.1180 3.00mm Wide 0.0080 0.20mm Radius

Part Number: ISC6002747 ISO: HGL 3002J-6D IC328 ANSI:HGL 3002J-6D IC328
Other inserts in this pocket
Enter your state to see the nearest shipper:
Lowest price
✔ You're viewing the lowest-priced option.
See all 3 options →
Ships closest to you
Enter your state above to see the closest ship location.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1082248
Vendor: Sussex Tool and Supply
$31.86
This product has a minimum quantity of 10

Description

ISCAR 6002747 Dog Bone Cut Off Positive TiCN A tough substrate with PVD coating, suitable for a wide range of applications on steel and stainless steel at low to medium speeds and medium to high feeds. The grade is recommended for interrupted cuts and machining under unstable conditions.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TICN
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0080 0.20MM
Insert Style HG
Insert Shape/Cutter Pocket Shape Dog Bone
Grade IC328
Insert Type Positive
Insert Size Ic 3
Insert Type/Oriantation Clamp Down
Cutting Width 0.1180 3.00MM
