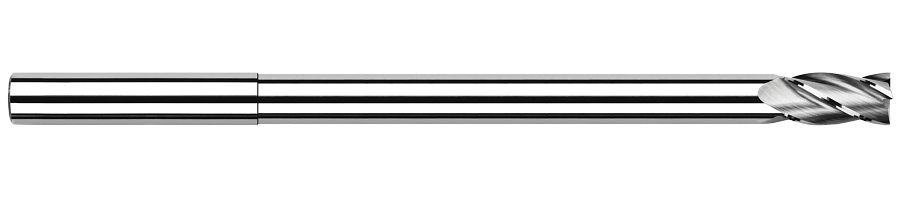

Picture of Harvey Tool 991928 Dia 7/16 LOC 0.6560 OAL 8.00 End Mill Standard Helix Carbide Uncoated Single End Square Sharp

Harvey Tool 991928 Dia 7/16 LOC 0.6560 OAL 8.00 End Mill Standard Helix Carbide Uncoated Single End Square Sharp

Part Number: HAR991928 0.438 x 0.438 x 0.656 x 8.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$311.90
SKU: 1284580

Description

HARVEY Tool End Mill Carbide Uncoated Square Sharp 4 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 4
Tool Dia 0.4375 11.11MM - 7/16
Length Of Cut 0.6560 16.66MM
Neck Length 5.8750 149.23MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
