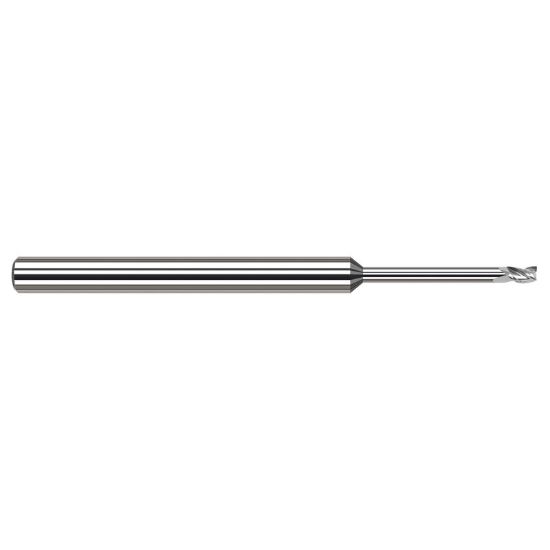

HARVEY Tool 982212 DIA 4.75MM LOC 0.2810 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR982212
Delivery date: 3-5 days
$48.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Machine Side Connection Size 0.1875 4.76MM
Overall Len 4.0000 101.60MM
Dimension Description 0.187 x 0.188 x 0.281 x 4.000
Taper Flute No
Single/Double End Single End
Length Type Standard / With Neck
Cutter Dia 0.1870 4.75MM
Neck Length 1.8750 47.63MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Of Cut 0.2813 7.15MM
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
