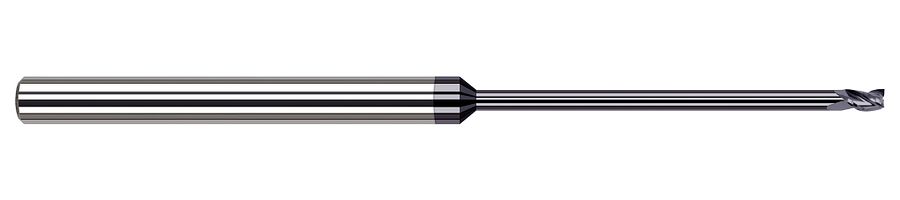

Picture of Harvey Tool 977400-C3 .100 Dia Carbide Stb FL 18x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Square Sharp

Harvey Tool 977400-C3 .100 Dia Carbide Stb FL 18x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Square Sharp

Part Number: HAR977400-C3 0.100 x 0.125 x 0.150 x 4.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$90.90
SKU: 1289145

Description

HARVEY Tool End Mill Carbide AlTiN Square Sharp 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Length Of Cut 0.1500 3.81MM
Neck Length 1.8120 46.02MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.1000 2.54MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
