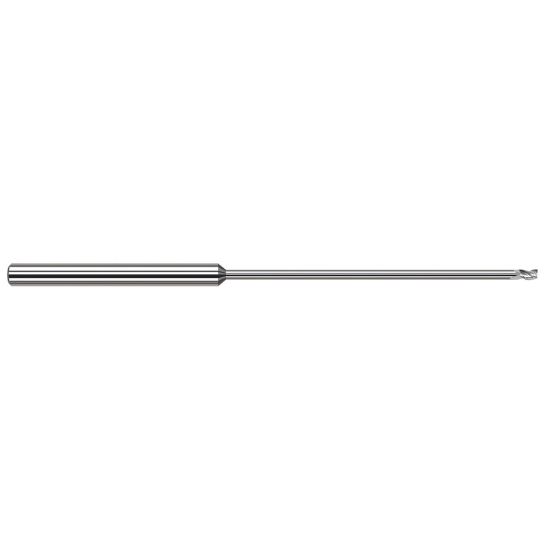

HARVEY Tool 972062 DIA 0.062 LOC 0.0930 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR972062
Delivery date: 3-5 days
$90.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Slot Milling, Counterboring, Face Milling, Shoulder Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Length Of Cut 0.0930 2.36MM
End Of Tool Shape Square
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Taper Flute No
Dimension Description 0.062 x 0.125 x 0.093 x 3.000
Overall Len 3.0000 76.20MM
Neck Length 1.8750 47.63MM
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.0620 1.57MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
