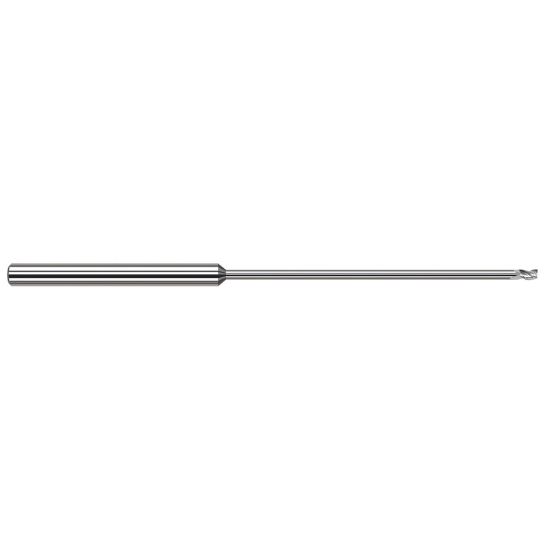

HARVEY Tool 972047 DIA 0.047 LOC 0.0700 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR972047
Delivery date: 3-5 days
$90.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.0700 1.78MM
Overall Len 2.5000 63.50MM
Cutter Dia 0.0470 1.19MM
Taper Flute No
Dimension Description 0.047 x 0.125 x 0.070 x 2.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 3
Neck Length 1.4060 35.71MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
