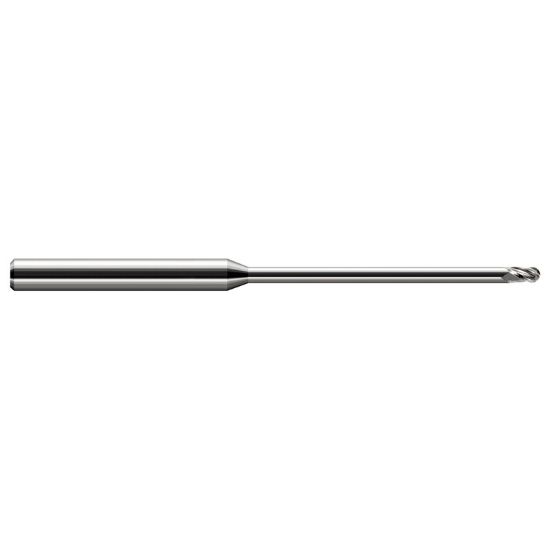

HARVEY Tool 970812 DIA 4.75MM LOC 0.2810 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR970812
Delivery date: 3-5 days
$79.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Ball Milling, Copy Milling, Ball Slot Milling
Made In USA Yes
Package Size 1
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
Overall Len 6.0000 152.40MM
Flutes/Inserts 3
Cutter Dia 0.1870 4.75MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Neck Length 3.3750 85.73MM
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.2813 7.15MM
Inch/Metric Inch
Length Type Standard / With Neck
Dimension Description 0.187 x 0.188 x 0.281 x 6.000
Taper Flute No
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
