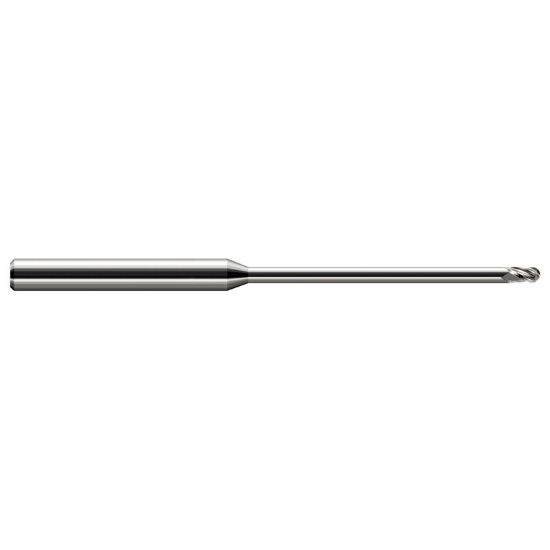

HARVEY Tool 970760 DIA 0.06 LOC 0.0900 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR970760
Delivery date: 3-5 days
$63.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Slot Milling, Side Milling, Ball Milling, Profile Milling, Copy Milling
Made In USA Yes
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
Taper Flute No
Flutes/Inserts 3
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.0600 1.52MM
End Of Tool Shape Ball Nose
Neck Length 1.0620 26.97MM
Overall Len 2.5000 63.50MM
Length Of Cut 0.0900 2.29MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Dimension Description 0.060 x 0.125 x 0.090 x 2.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
