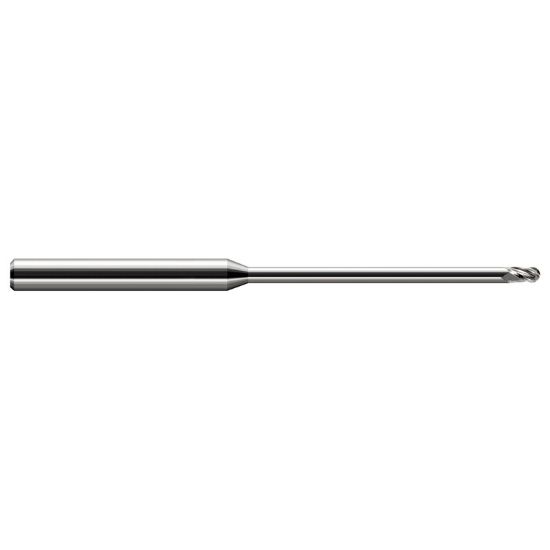

HARVEY Tool 970740 DIA 0.04 LOC 0.0600 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR970740
Delivery date: 3-5 days
$67.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Copy Milling, Side Milling, Ball Milling
Shipping State Massachusetts
Performance Rating General Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Length Of Cut 0.0600 1.52MM
Taper Flute No
Dimension Description 0.040 x 0.125 x 0.060 x 2.500
Cutter Dia 0.0400 1.02MM - #60
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Neck Length 0.7200 18.29MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
