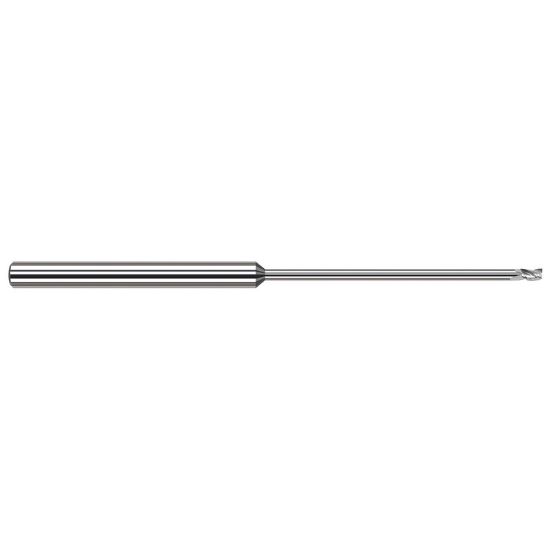

HARVEY Tool 969662 DIA 0.062 LOC 0.0930 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR969662
Delivery date: 3-5 days
$63.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA Yes
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Of Cut 0.0930 2.36MM
End Of Tool Shape Square
Neck Length 1.3750 34.93MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Dimension Description 0.062 x 0.125 x 0.093 x 3.000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 3.0000 76.20MM
Taper Flute No
Cutter Dia 0.0620 1.57MM
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
